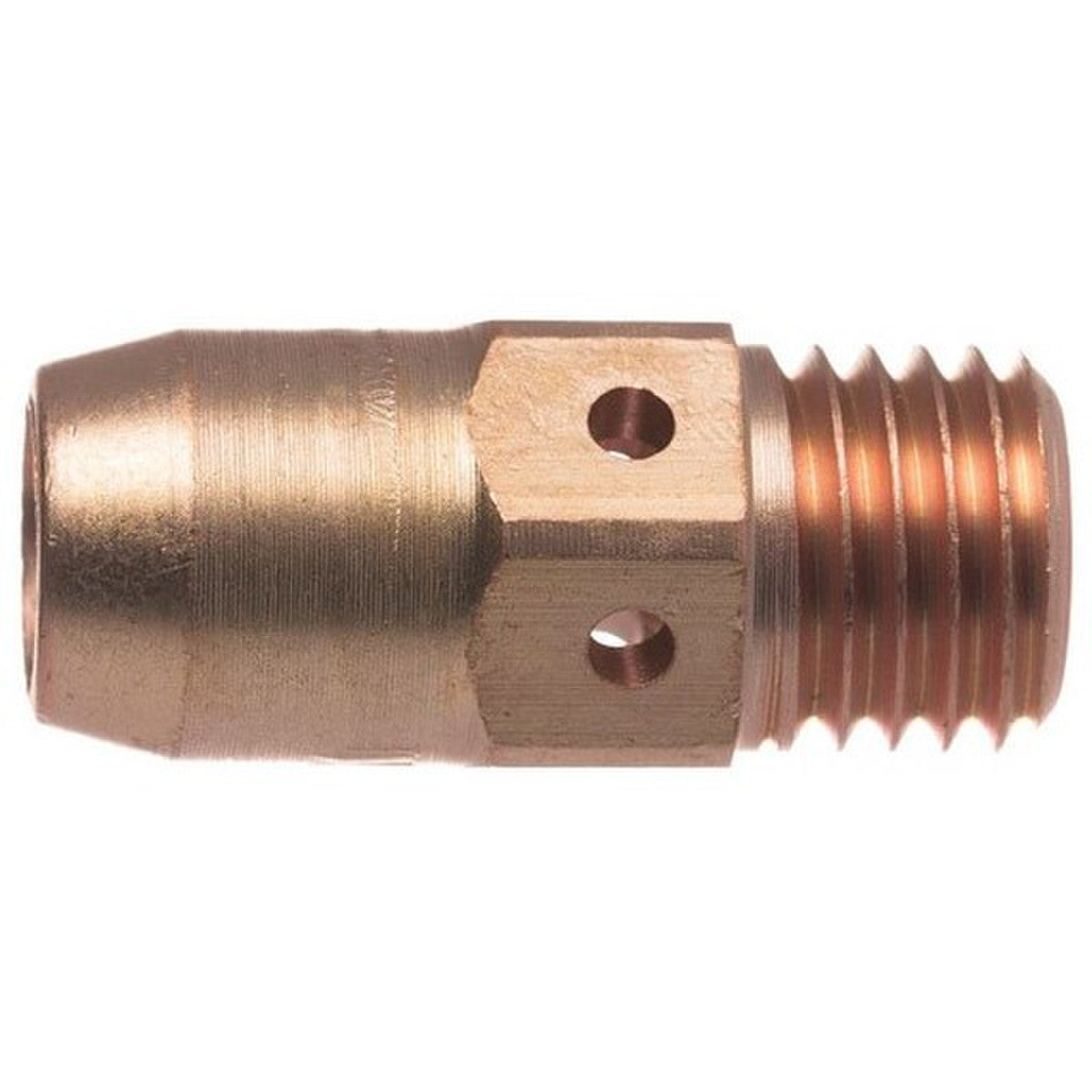

1560-1114 Tweco® 14H M12 Gas Diffuser Eliminator 5 Pack

Tweco® Eliminator® Series Brass Gas Diffuser is perfect for use with course thread nozzle assemblies with 600 A Tweco® Eliminator® MIG gun series as well as eliminator front-end consumables. Gas diffuser has magnificent electrical properties making it ideal for use in medium to heavy duty standard welding application up to 600 A. 2.521" Gas diffuser with M12 x 1.5-6g thread size has six 0.094" gas holes. It features conduit liner up to 5/64" wire with a silicon O-ring to provide secure sealing against the nozzle assembly. It features a course thread that is machined on the external surface to let the nozzle assemblies to thread over and accommodate the nozzle in place during the welding process. It features part number rolled stamped on the external surface and overall length with replacement O-ring number for easy identification. Gas diffuser is made from 360-brass alloy bar stock offers consistent dimensional stability. It has a proper threaded size conductor tube to be used with MIG guns. Gas diffuser is sold as 5 per pack.

KEY FEATURES

• Easy identification - part no rolled stamped on the outside surface
• Designed to be used with course thread nozzle assemblies
• Machined from 360 brass alloy bar stock to ensure consistent dimensional stability
• Gas diffuser provides the od course threads so that the nozzle assembly can attach to the conductor tube
• Gas diffuser has a silicon O-ring to seal against the nozzle assembly
• Replacement O-ring Part No EL52-1 (Stock No 1560-1108)
• Recessed Tips are generally used for higher heat applications where longer electrical stick-out is required, or in cases where the nozzle may touch the work piece (tack, spot, and stitch)
• Flush Tips are generally used where a shorter electrical stick-out is used sometimes resulting in shorter/tighter arc lengths, this brings the tip closer to the work piece
• Protruding Tips are generally used when welding open root pipe or any joint that requires the welder to get into a tight weld joint
• However the down side to this is the chance of arcing the tip to the work piece, which could damage front end parts resulting in downtime needed to replace

Applications

• Used in medium to heavy duty welding application up to 600 Amp
